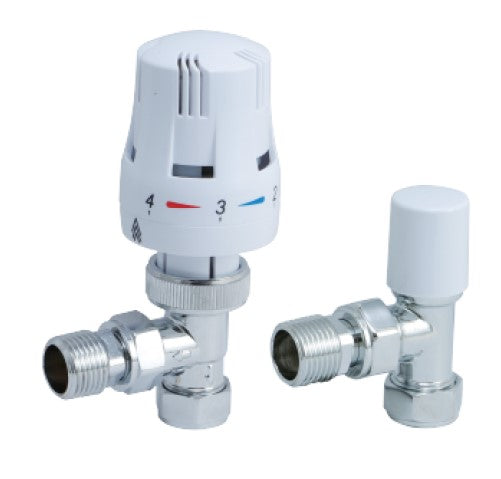

15mm ANGLED TRV AND LOCKSHIELD

15mm ANGLED TRV AND LOCKSHIELD

Product information

• Valve to radiator: 1/2"

• Valve to Pipe: 15mm Compression

• Sensor Type: Liquid Sensor

• Material: Brass

• Warranty: 3 Years

• Response Time: not exceed 40 Mins

• Hysteresis: ＜1 K

• Weight: 455g

• Weight boxed: 467g

• Bi-Directional Valve Body

• With Frost Protection: When the scale be setted "❄"

Pressure Rating

• Max Test Pressure: 10Bar

• Max Pressuredifferential: 0.1 Mpa

Temperature Ratings

• Max flow temperature 120 ℃

• Temperature adjustment range 7-28 ℃

• Differential pressure influence: ＜1 K

• Max ambient temperature: ＜1.5 K

• Water temperature effect: /

Flow Ratings

• Nominal flow rate: Min setting 212.1 kg/h, when the temperature on 6.3℃

• Max setting 210.1 kg/h, when the temperature on 28.83 ℃

• Max Flow Rate 173 kgs/h
