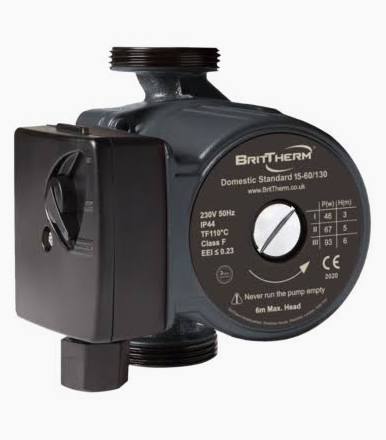

BritTherm Domestic Standard Circulating Pump 15-60/130 DS15

Part Number: DS15

The Domestic Standard 15-60/130 is a 3 Speed Manual Domestic Heating Circulator with a standard 1 ½” threaded connection. It has a port to port distance of 130mm and produces a maximum head of 6 meters making it perfect for replacing existing Circulators in domestic heating systems.

The Domestic Standard comes with a 3 year BritTherm™ guarantee and is no different in size to the market leading brands found in most British homes.

Technical Specification

Connection Size: 1 ½”

Port to Port Distance: 130mm

Maximum Head: 6 Meters

Maximum Flow Rate: 65 Litres Per Minutes

Speed Control: 3 Fixed Speeds

System Pressure: 1.0 MPa / 10 Bar

Protection Class: IP42

Temperature Class: TF110ºC

Insulation Class: F

Supplied With: Rubber Washers x2

Material: Cast Iron

Colour: Red/Black

Weight: 2.4 kg
